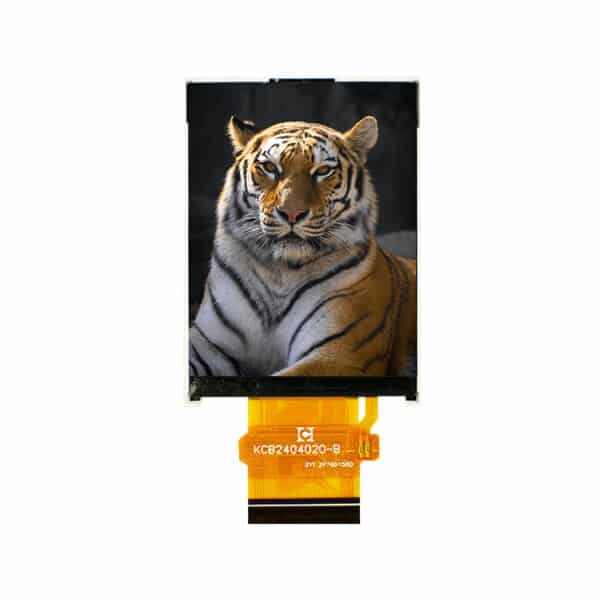

K240B4020-lcd

2.4" LCD Manufacturer_ILI9341 Screen_RGB/MCU/SPI Interface

  • Resolution: 240 x 320 dots
  • Viewing angle: 12 O'clock
  • Interface Type: RGB/MCU/SPI
  • Driver chip: ILI9341V
  • Touch method: RTP/CTP
  • Backlight Brightness: 350 cd/m²
  • Overall dimensions: 42.72 (W) × 59.46 (H) × 2.50 (T) mm
Inquire about pricing now
136 8646 9431

Basic description

2.4 inch TFT LCD liquid crystal display resolution of 240 x 320, driver IC for ILI9341V, brightness up to 320-800cd/m2, support RGB/MCU/SPI interface. Color TFT LCD display low power consumption, bright and true colors, high contrast, high definition resolution response refresh speed, color support up to 16M colors, can display high quality dynamic and clear images and graphic models.

ICP DAS Lcd display quality is higher than the industry standard, batch products without color deviation, color and brightness consistency, in line with industrial and consumer grade production process requirements, stable quality, LCD display industry good customer reputation and credibility, welcome to call us, we will provide you with the best quality products and services.

sports event element unit (of measure)
sizes 2.4 inch LCD screen inch (unit of length equal 2.54 cm.)
Overall dimensions 42.72(W) x 59.46(H) x 2.50(T) millimetre
display area 36.72x 48.96 millimetre
fractional 240×320
LCD Type a-Si TFT
visual angle 12 O'CLOCK
driver chip ILI9341V
Interface Type RGB/MCU/SPI
operating temperature -20℃~ 70℃
Storage temperature -30℃~ 80℃
LED light 4 LEDs

The above display technical parameters to LCD display specifications shall prevail, customer satisfaction is our eternal purpose, thank you for choosing our display and service.

blueprint

K240B4020-drawing

PIN Definition

pin number Pin Definitions Functional Description
1 SDI data entry
2 SDO Serial data output
3 IM0  I/O Port Selection
4 IM1  I/O Port Selection
5 IM2  I/O Port Selection
6 IM3  I/O Port Selection
7 RESET reset signal
8 VS frame synchronization
9 HS line synchronization
10 DCLK Data Bit Clock
11 DE Data Valid Enable Signal
12 DB17 data cable
13 DB16 data cable
14 DB15 data cable
15 DB14 data cable
16 DB13 data cable
17 DB12 data cable
18 DB11 data cable
19 DB10 data cable
20 DB9 data cable
21 DB8 data cable
22 DB7 data cable
23 DB6 data cable
24 DB5 data cable
25 DB4 data cable
26 DB3 data cable
27 DB2 data cable
28 DB1 data cable
29 DB0 data cable
30 RD Read Signal, Low Active
31 WR Write Signal, Low Active
32 DC data output
33 CS film selection
34 GND structural particle: used before a verb or adjective, linking it preceding the verb or adjective
35 VCC system voltage
36 IOVCC  Interface Voltage
37 NC vacant
38 NC vacant
39 LEDK Backlight Negative
40 LEKA Backlight Positive

About Samples

Three TFT LCD liquid crystal displays are provided free of charge.

Depending on the need for communication and validation, and standard or customized materials, such as resistive or capacitive touch screen, FPC or backlighting, the structural drawings of TFT LCD LCD display are arranged within 2-3 days for customer confirmation.

Sample delivery time for standardized TFT LCD displays is 2-3 days. For customized TFT LCD display, samples are made according to the confirmed drawings. Sample production takes time.Sample delivery lead time for TFT LCD display is generally 7-12 days. Cycle time is 18-21 days.

After the samples are made, they will be inspected according to the sample delivery process. A series of structural and electrical performance tests, high, low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures. We provide actual test reports of TFT LCD display to ensure the reliable performance of TFT LCD display.
